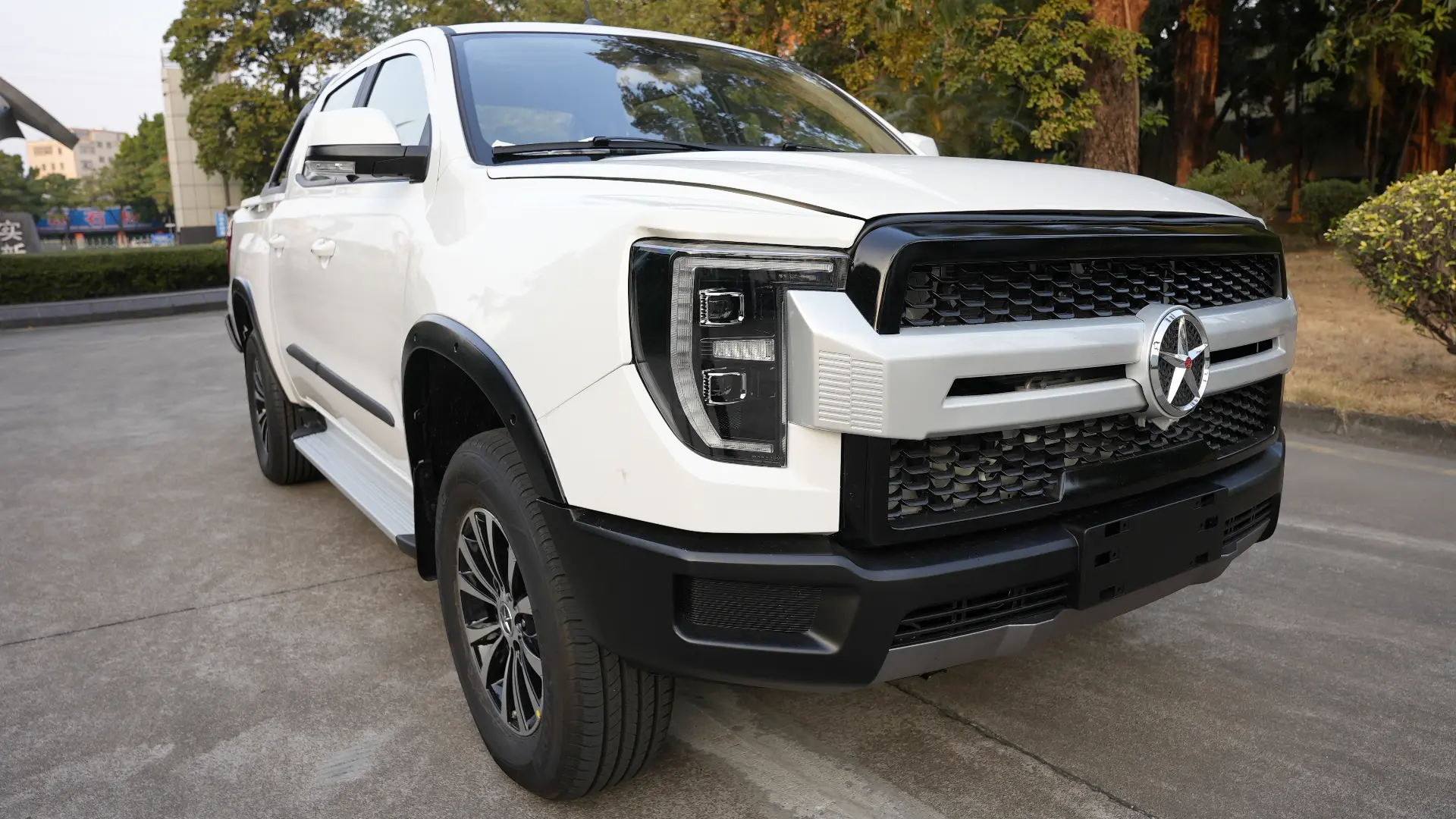

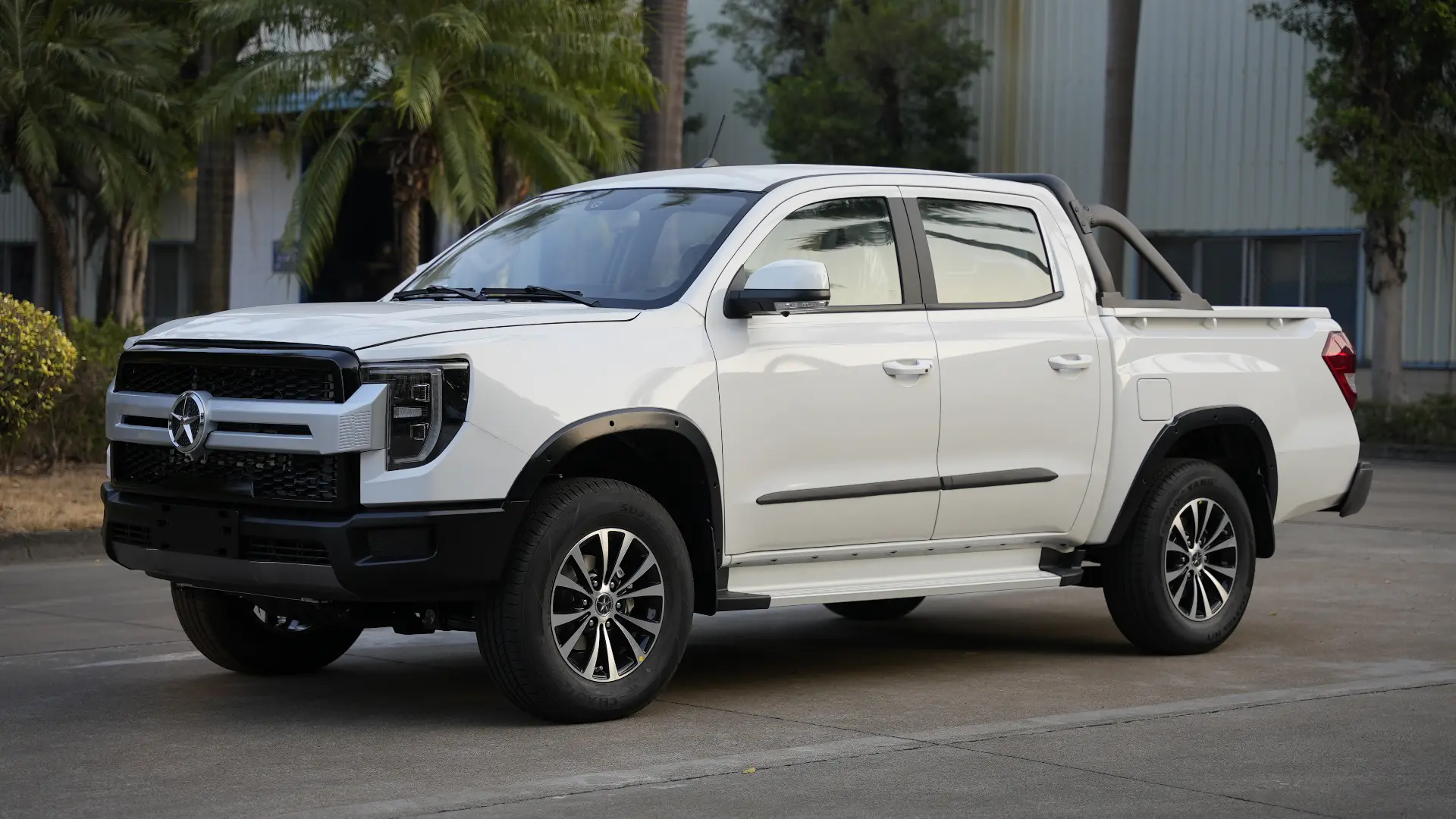

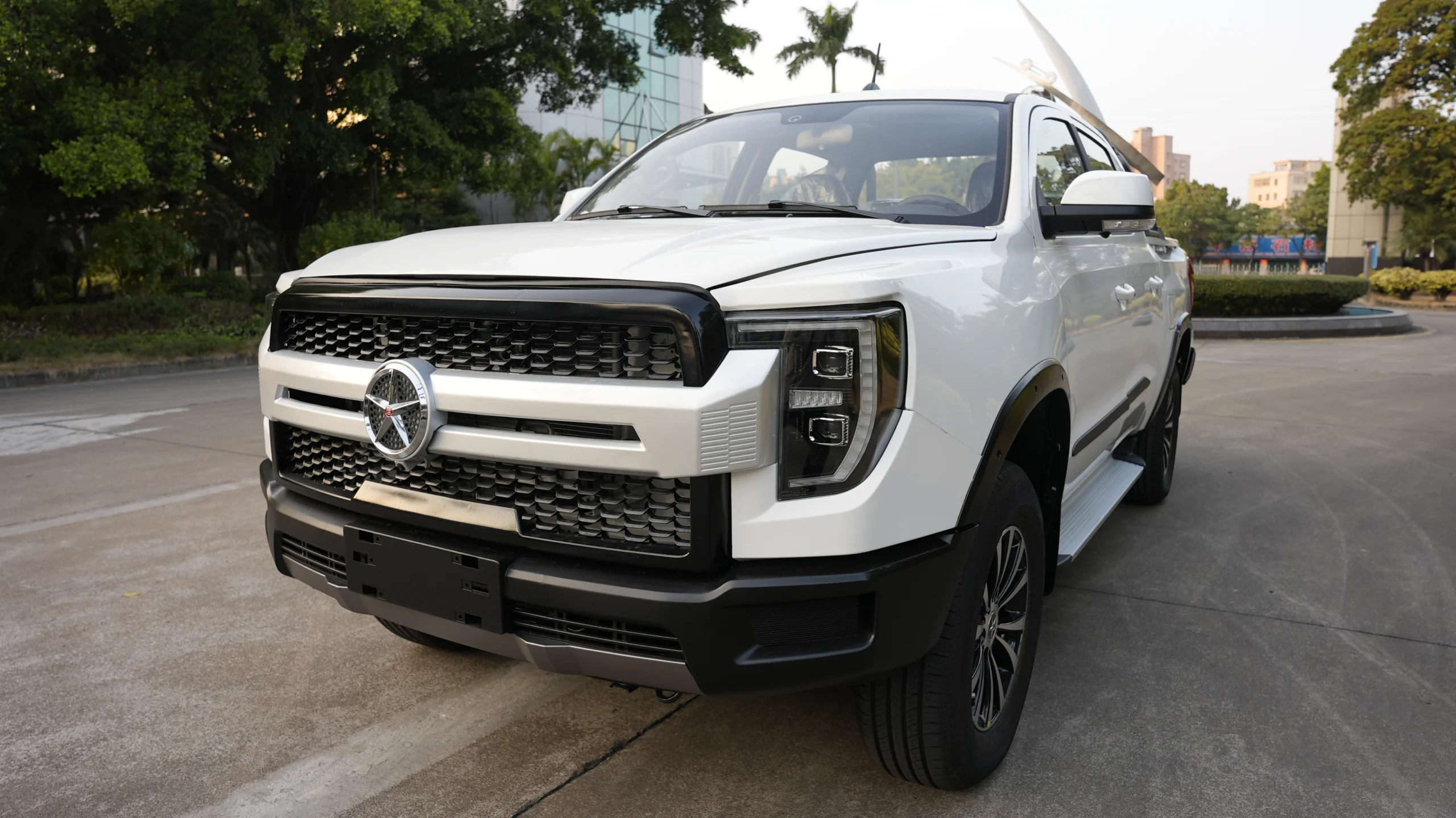

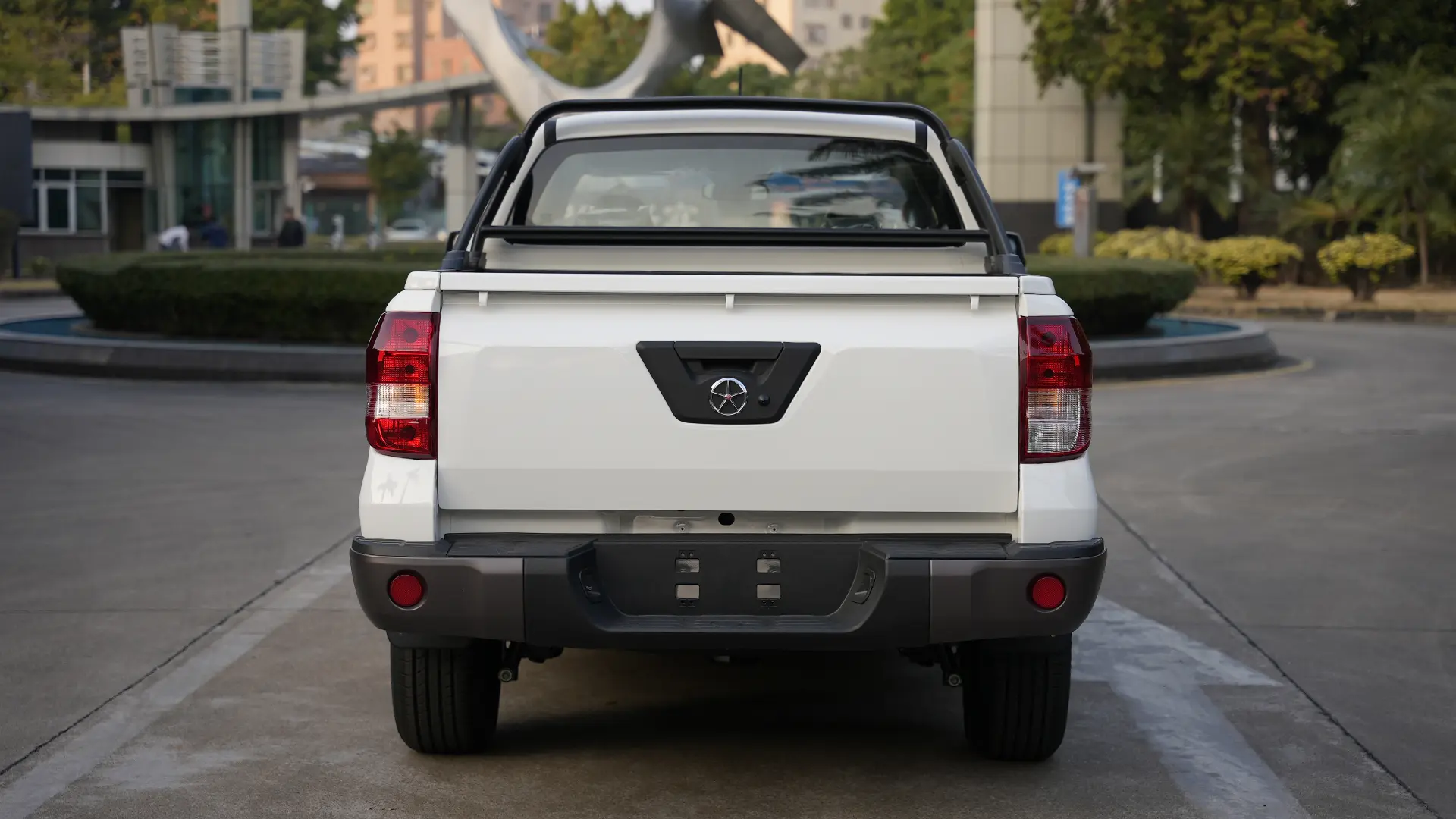

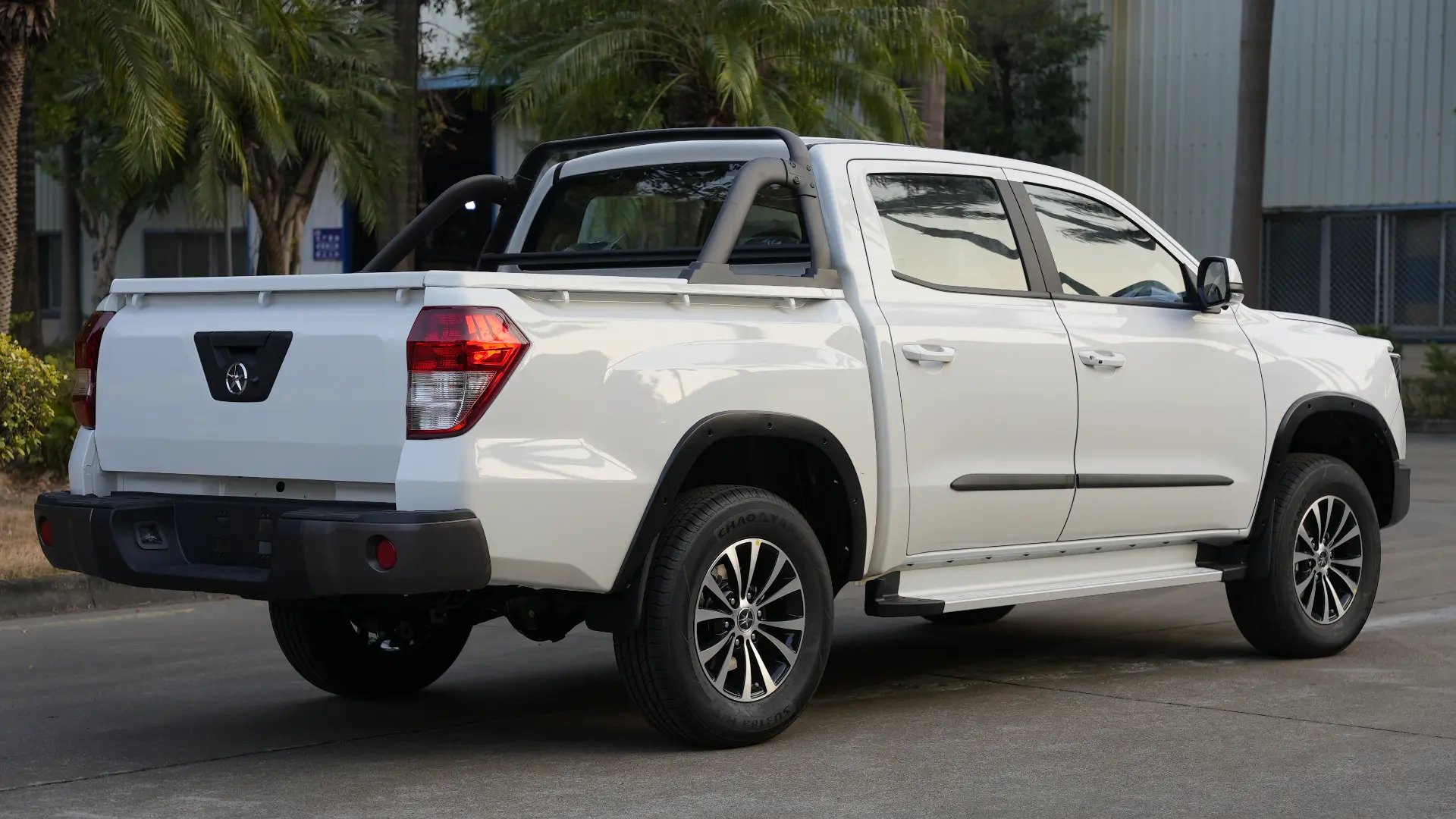

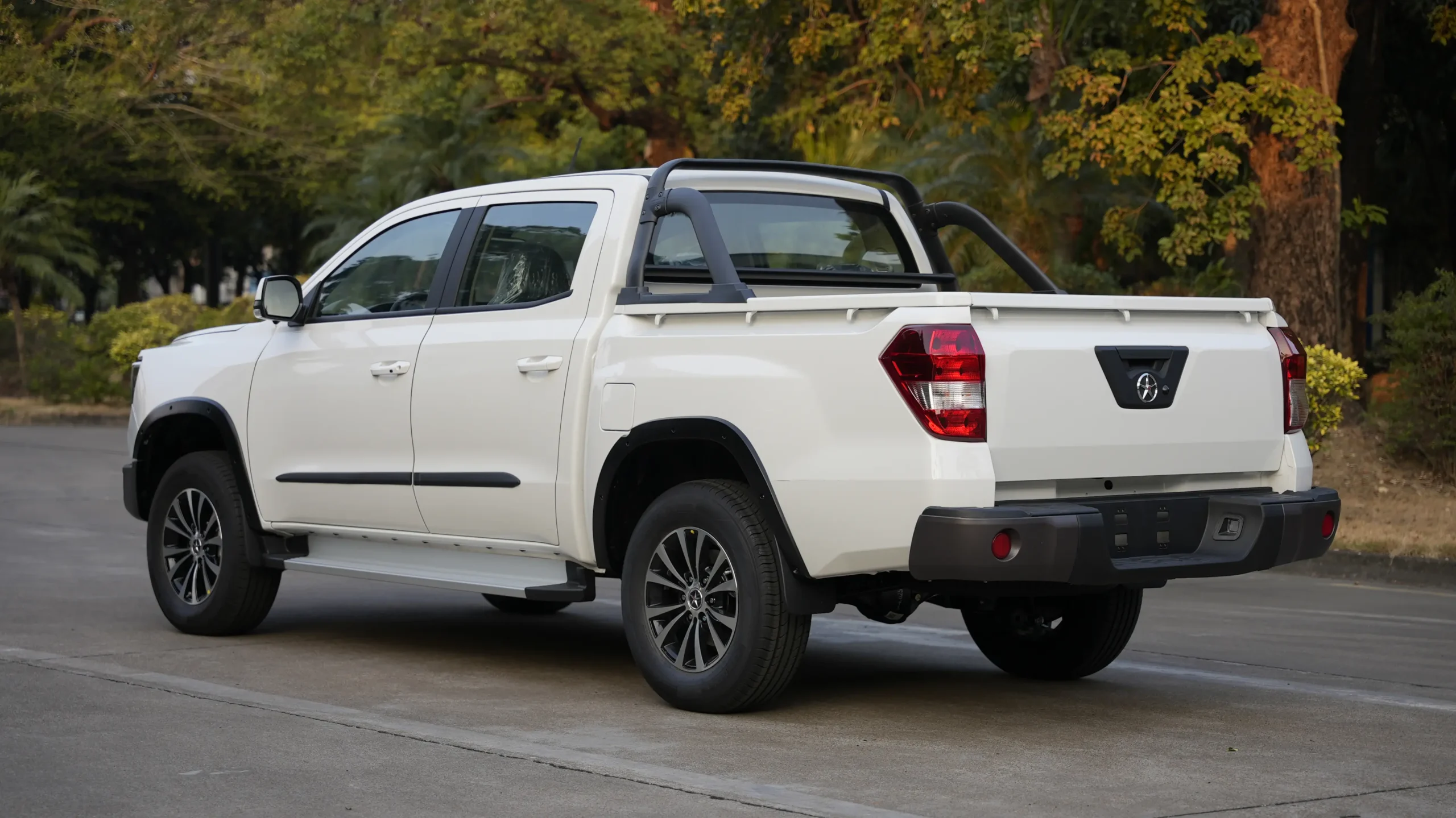

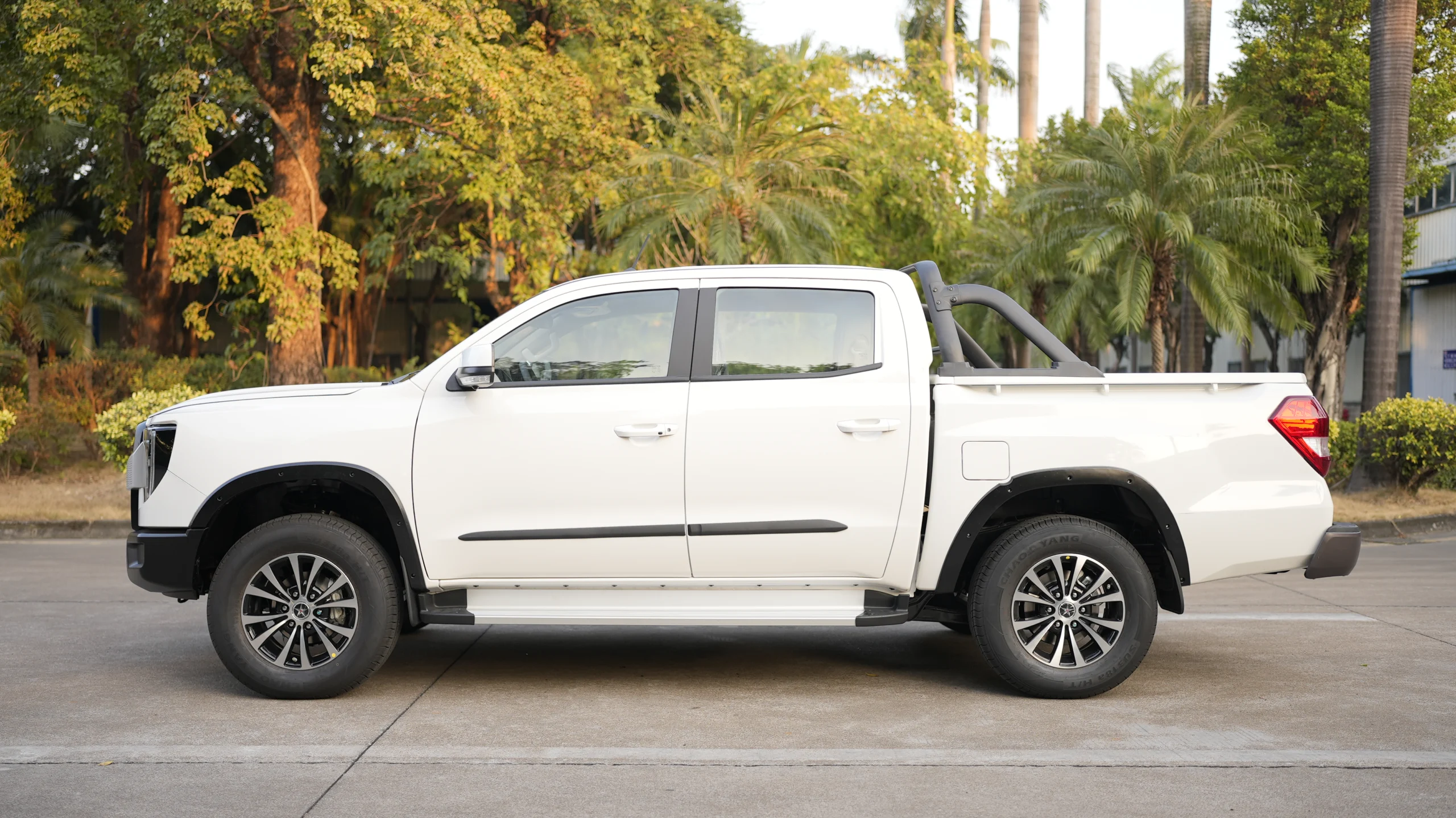

Dayun EV5-Luxury 5seats (Right hand drive) DYQ1032BEV1R-H
Dayun EV5-Luxury 5seats (Left hand drive) DYQ1032BEV1R-H
● Available ○ Optional – Not Available,
| Basic Parameter | |
|---|---|
| Vehicle Overall Dimensions (mm) | 5330*1870*1864 |
| Packing box Overall Dimensions (mm) | 1575*1610*530 |
| Maximum Speed | 120 |
| Endurance mileage (NEDC) | 59KWH NEDC:260 65KWH NEDC:275 77KWH WLTC:300 |
● Available ○ Optional – Not Available,
| Car body | |
|---|---|
| Wheel Base(mm) | 3100 |
| Front/Rear Wheel Base (mm) | 1580/1580 |
| Seat | 5 |
| Battery capacity (kWh) | 59/65/77kWh |
| Battery brand | CATL/LEVE |
| Battery type | Lithium iron phosphate |
| Charging standard | Chinese standard, Japanese standard, European standard |
| Fast charging and full charge time (h) | 0.75（20%-80%） |
● Available ○ Optional – Not Available,
| Motor | |
|---|---|
| Rated/peak power(KW) | 65/130 |
| Rated speed (RPM) | 4000 |
| Maximum speed | 12000 |
| Rated torque | 120 |
| Maximum torque (N · m) | 330N.m |
● Available ○ Optional – Not Available,
| Chassis | |
|---|---|
| Driving Method | 2WD |
| Front/Rear Suspension | Double Wishbone Independent Suspension |
| Steering | Hydraulic Power Steering |
● Available ○ Optional – Not Available,
| Wheel Brake | |
|---|---|
| Front/Rear Brake Type | Ventilated Disc/Drum |
| Parking Brake Type | Hand |
| Front/Rear Tyre Size | 245/70R17 |
| Spare Tyre | no Spare Tyre |
● Available ○ Optional – Not Available,
| Active/Passive Safety | |
|---|---|
| Dual Airbags | ● |
| Seatbelt Unfastening Warning System | ● |
| Central Locking | ● |
| Remote Key | ● |
| Uphill assistance | ● |
| Automatic door unlocking after collision | ● |
| Automatic locking of driving | ● |
● Available ○ Optional – Not Available,
| Control Equipment | |
|---|---|
| ABS+EBD | ● |
● Available ○ Optional – Not Available,
| External Equipment | |
|---|---|
| Alum-Alloy Wheel | ● |
| ESS | ○ |
| Pedestrian | ○ |
| V2L | ○ |
● Available ○ Optional – Not Available,
| Internal Equipment | |
|---|---|
| Multi-function steering wheel | ● |
| Visual Imaging System | ● |
| Reverse Sensor | ● |
| ECU Monitor | ● |
| One touch start | ● |
| Keyless entry | ● |
● Available ○ Optional – Not Available,
| Seat Equipment | |
|---|---|
| Driver's seat adjustment | Manual 4-way adjustment |
| Front passenger seat adjustment | Manual 4-way adjustment |
● Available ○ Optional – Not Available,
| Multimedia Equipment | |
|---|---|
| GPS System | ● |
| Colourful Screen | ● |
| Bluetooth/Car telephone | ● |
● Available ○ Optional – Not Available,
| Lighting Equipment | |
|---|---|
| Dipped Headlight | Halogen |
| Full Beam Headlight | Halogen |
| Front Lamp | ● |
| Electric Height-adjustable Headlamps | ● |
● Available ○ Optional – Not Available,
| Window/Rear View Mirror | |
|---|---|
| Front/Rear Window | Electric |
| Electrical Control Rear View Mirror | ● |
● Available ○ Optional – Not Available,
| Air Condition | |
|---|---|
| Electric Control Air Conditioning | electric |
